QBe2.0 Beryllium Copper Plate and Strip Cold Drawn with Electroplated Surface for Transformer Applications

Certification : ISO9001, ASTM, JIS, GB, EN

MOQ : 1

Price : 1

Model NO. : QBe2.0

Technique : Cold Drawn

Grade : 1000 Series

Alloy Type : Alloy

Surface Treatment : Electroplating, Reflow Plating, Hot-DIP Plating

Production Capacity : 5000mt/Month

Beryllium Content : 1.8-2.0%

Nickel+Cobalt Content : >=0.2%

Nickel+Cobalt+Iron Content : <=0.6%

Copper+Beryllium+Nickel+Cobalt+Iron Content : >=99.5%

Conductivity : >=25% IACS

Tensile Strength Range : 390-1520 N/m2

Elongation Range : 1-65%

Hardness Range : 90-450 hv

Material Width : 1600mm max

Contact Now

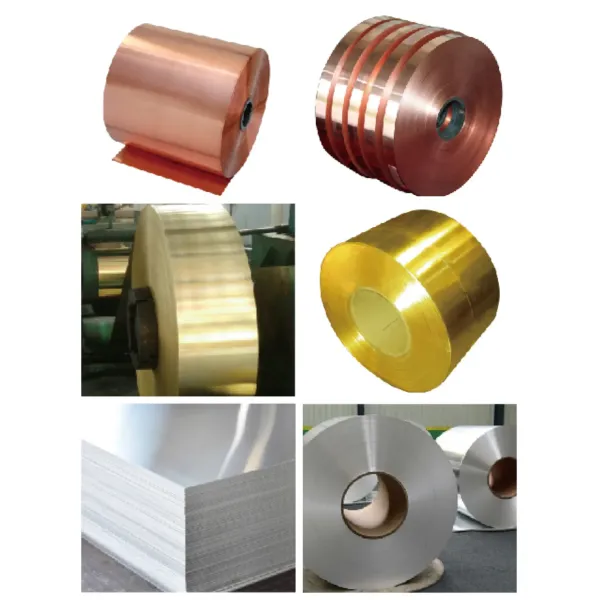

PRODUCT SHOW

QBe2.0 Beryllium Copper Plate and Strip Cold Drawn with Electroplated Surface for Transformer Applications

CHEMICAL COMPOSITION

Alloy			Chemical Composition(%)
ASTM	JIS	GB	Be	Ni+Co	Ni+Co+Fe	Cu+Be+Ni+Co+Fe
C17200	C1720	QBe2.0	1.8-2.0	>=0.2	<=0.6	>=99.5
Features and Use	Excellent physical and chemical properties, high strength and elasticity, fatigue resistance, electrical and thermal conductivtity, corrosion resistance good wear resistance, not magnetic characteristics and no spark in the mold manufacturing. In the industries of indutries of mold manufacture, machinery, electronics and other business are widely used.

PHYSICS PROPERTIES

ASTM	Temper	GB	Conductivity(IACS)	Tensile Strength(N/m²)	Elongation(%)	Hardness(hv)
C17200	TB00(A)	QBe2.0	>=25%	390-590	35-65	90-144
	TD01(1/4H)	QBe2.0	>=25%	510--630	10-45	120-220
	TD02(1/2H)	QBe2.0	>=25%	570-695	5-30	140-240
	TD04(H)	QBe2.0	>=25%	635-930	2-18	170-287
	TF00(AT)	QBe2.0	>=25%	1080-1470	2-15	320-413
	TH01(1/4HT)	QBe2.0	>=25%	1135--1420	2-10	320-430
	TH02(1/2HT)	QBe2.0	>=25%	1145-1490	1-8	340-440
	TH04(H)	QBe2.0	>=25%	1310-1520	1-6	360-450
	TM0O(AM)	QBe2.0	>=25%	690-760	>=16	210-251
	TM01(1/4HM)	QBe2.0	>=25%	760--830	>=15	230-271
	TM02(1/2HM)	QBe2.0	>=25%	830-930	>=12	250-339
	TM04(HM)	QBe2.0	>=25%	930-1030	>=9	285-343
	TH06(XHM)	QBe2.0	>=25%	1030--1100	>=9	309-369
	TH08(XHMS)	QBe2.0	>=25%	1070--1210	>=4	317-393

Remarks:confirmed, can provide surface electroplating, reflow plating, hot-dip plating materials.
